Overview
AKUSENSE F-UA Series Space Saving Fiber Optic Units are compact, flat/slim fiber sensing heads designed for installations where a standard round fiber cannot fit. With an ultra-small 2mm bending radius they route easily through tight gaps, and are offered as diffuse (PD-F4xUA) and through-beam (PT-F5xUA / PT-FZ8) heads. Emitter and receiver are built into a slim body; min. detectable object goes down to Ø0.05mm on the diffuse models. SUS or aluminum sensing head with PE jacket, field-cuttable, 1m or 2m cable. Pairs with AKUSENSE PE1/PE2 fiber amplifiers. Sample test and bulk procurement are supported.
Key Features
- Space-Saving Flat Body — slim flat profile for mounting in narrow gaps where round fibers won’t fit
- 2mm Bend Radius — highly flexible cable routes through tight mechanical spaces
- Diffuse & Through-Beam — PD-F4xUA diffuse for one-sided sensing; PT-F5xUA/FZ8 through-beam across a gap
- Fine Object Detection — min. detectable object from Ø0.05mm (diffuse) to Ø0.2~1.0mm (through-beam)
- Straight & Right-Angle Heads — both orientations available for varied mounting directions
- Field-Cuttable — cut to required length on site
- SUS / Aluminum Head — stainless steel or aluminum sensing head with PE cable jacket
- Amplifier Compatible — works with AKUSENSE PE1/PE2 series fiber amplifiers
Technical Specifications
| Parameter | Specification |
|---|---|
| Working Principle | Optical fiber (passive, requires fiber amplifier) |
| Sensing Method | Diffuse (PD) / Through-beam (PT) |
| Body Style | Space-saving flat / slim |
| Fiber Core Diameter | Ø0.5mm / Ø1.0mm (by model); FZ8: Emitter Ø0.5 / Receiver Ø0.25mm |
| Fiber Arrangement | Standard (1E+1R, or 1E+7R on PT-FZ8) |
| Min. Detectable Object | Ø0.05mm (diffuse) / Ø0.2~1.0mm (through-beam) |
| Cable Length | 1000mm / 2000mm (by model) |
| Bending Radius | 2 mm |
| Field-Cuttable | Yes |
| Housing Material | SUS + PE or Aluminum + PE (by model) |
| Head Style | Straight / Right-angle |
Model Selection Table
| Model | Sensing | Head | Cable | Core | Min. Object | Housing |
|---|---|---|---|---|---|---|

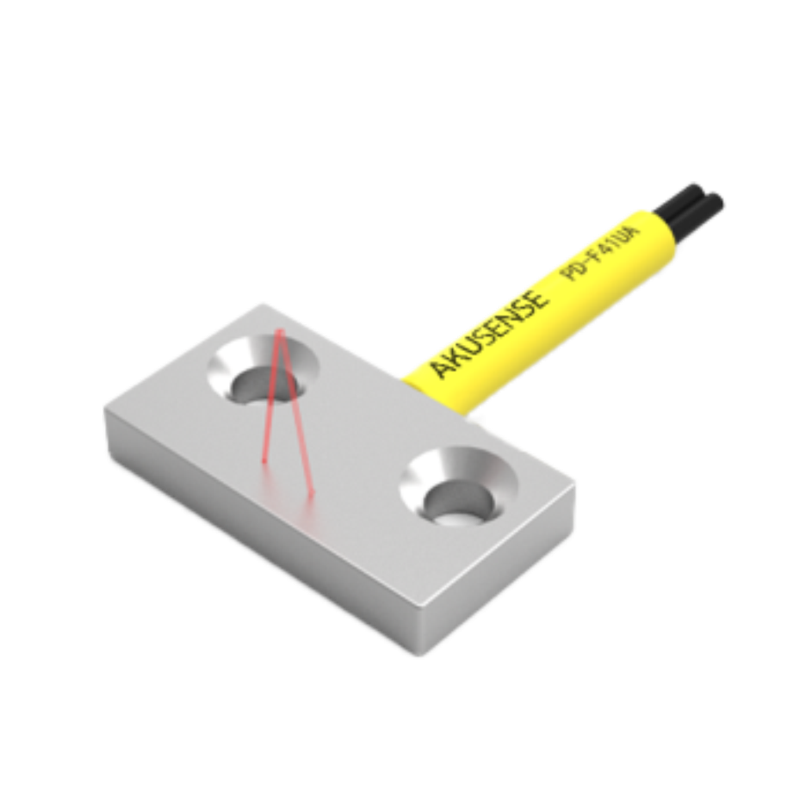

| PD-F41UA | Diffuse | Right-angle | 1m | Ø0.5mm (1E+1R) | Ø0.05mm | SUS+PE |
| PD-F42UA | Diffuse | Right-angle | 2m | Ø0.5mm (1E+1R) | Ø0.05mm | SUS+PE |
| PD-F44UA | Diffuse | Straight | 1m | Ø0.5mm (1E+1R) | Ø0.05mm | SUS+PE |
| PD-F47UA | Diffuse | Right-angle | 1m | Ø0.5mm (1E+1R) | Ø0.05mm | SUS+PE |
| PT-F51UA | Through-beam | Straight | 1m | Ø0.5mm (1E+1R) | Ø0.5mm | Aluminum+PE |
| PT-F52UA | Through-beam | Straight | 2m | Ø1.0mm (1E+1R) | Ø0.5mm | Aluminum+PE |
| PT-F53UA | Through-beam | Right-angle | 1m | Ø0.5mm (1E+1R) | Ø0.5mm | SUS+PE |
| PT-F54UA | Through-beam | Right-angle | 2m | Ø1.0mm (1E+1R) | Ø1.0mm | SUS+PE |
| PT-F57UA | Through-beam | Right-angle | 1m | Ø0.5mm (1E+1R) | Ø0.2mm | SUS+PE |
| PT-FZ8 | Through-beam | Right-angle | 1m | E Ø0.5 / R Ø0.25mm (1E+7R) | Ø0.5mm | Aluminum+PE |
Note: These fiber heads require a compatible fiber amplifier (PE1/PE2 series), sold separately. Please contact us if you need a specific sensing requirement.
Applications
- Detection in narrow gaps and compact machinery where standard round fibers cannot fit
- Small part presence and counting in tight assemblies
- Edge and positioning detection on compact automated equipment
- Semiconductor and electronics handling with limited mounting space
- Label and mark detection on tight-packaging lines
- Highly flexible routing around machine obstructions
How to Select
- Choose sensing method
Diffuse (PD) for one-sided mounting; through-beam (PT) when both sides are accessible for higher reliability. - Select head orientation
Right-angle for compact installations; straight when axial mounting is preferred. - Select cable length
1m or 2m according to the distance to the fiber amplifier. - Match min. detectable object
Diffuse models detect down to Ø0.05mm; through-beam models from Ø0.2~1.0mm. - Pair with a fiber amplifier
Use AKUSENSE PE1 (standard) or PE2 (high-speed, IO-Link) series fiber amplifier.
