Overview

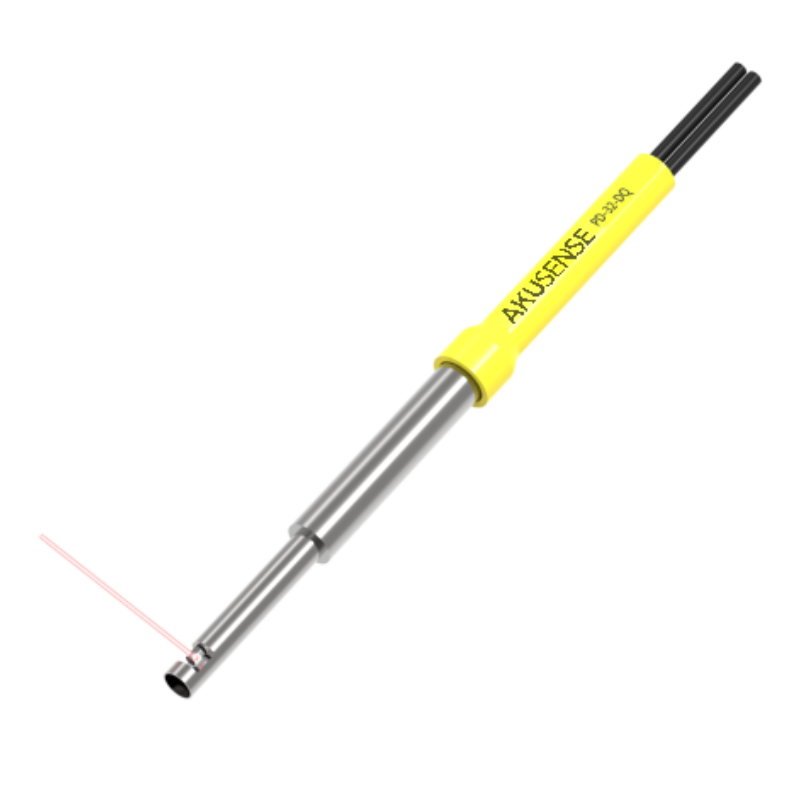

AKUSENSE 32-DQ/SQ Series Side View Fiber Optic Units are fiber sensing heads whose light exits at 90° to the fiber cable axis, so they detect the side edge of a workpiece or a web entering from the side rather than looking straight ahead. Built on a Ø2.5~Ø3.0mm stainless steel body with a 15mm long convex tube, they are offered as diffuse (PD-32-DQ / PD-32-SQ) and through-beam (PT-32-DQ / PT-32-SQ) versions. The through-beam PT-32-SQ uses a 1-emitter + 7-receiver arrangement for stable side detection. SUS head with PE jacket, field-cuttable, 2m cable. Pairs with AKUSENSE PE1/PE2 fiber amplifiers. Sample test and bulk procurement are supported.
Key Features
- Side View (90°) Head — light exits sideways for edge and side-entry detection where axial sensing is impossible
- Diffuse & Through-Beam — PD diffuse for one-sided side detection; PT through-beam across a side gap
- Ø2.5~Ø3.0mm Body — compact stainless steel head with 15mm long convex nose
- Multi-Receiver Option — PT-32-SQ uses 1 emitter + 7 receivers for stable through-beam side detection
- Field-Cuttable — cut to required length on site
- SUS + PE Construction — stainless steel sensing head with flexible PE cable jacket
- Amplifier Compatible — works with AKUSENSE PE1/PE2 series fiber amplifiers
Technical Specifications
| Parameter | Specification |
|---|---|
| Working Principle | Optical fiber (passive, requires fiber amplifier) |
| Sensing Method | Diffuse (PD) / Through-beam (PT) |
| Sensing Direction | Side view (90° side-looking) |
| Head Body | Ø3.0mm (DQ) / Ø2.5mm (PT-32-SQ) stainless steel |
| Convex Tube Length | 15 mm |
| Fiber Core Diameter | Ø0.5 mm |
| Fiber Arrangement | Standard; PT-32-SQ: 1E + 7R |
| Min. Detectable Object | Ø0.5mm (through-beam models) |
| Cable Length | 2000 mm |
| Bending Radius | 25mm (DQ) / 10mm (SQ) |
| Field-Cuttable | Yes |
| Housing Material | SUS + PE |
Model Selection Table
| Model | Sensing | Body | Core | Min. Object | Bend Radius |
|---|---|---|---|---|---|
| PD-32-DQ | Diffuse | Ø3.0mm, 15mm convex | 1E + 1R | — | 25mm |
| PD-32-SQ | Diffuse | Ø3.0mm, 15mm convex | 1E + 1R | — | 10mm |
| PT-32-DQ | Through-beam | Ø3.0mm, 15mm convex | 1E + 1R | Ø0.5mm | 25mm |
| PT-32-SQ | Through-beam | Ø2.5mm, 15mm convex | 1E + 7R | Ø0.5mm | 10mm |
Note: These side-view fiber heads require a compatible fiber amplifier (PE1/PE2 series), sold separately. Please contact us if you need a specific sensing requirement.
Applications
- Side-edge detection of workpieces and webs entering from the side
- Edge guide and loop control of thin strips and films
- Side presence detection where axial sensing is blocked
- Label and mark detection along the side of a moving product
- Compact machine installations requiring sideways light emission
How to Select
- Choose sensing method
Diffuse (PD) for one-sided side detection; through-beam (PT) when emitter and receiver can be placed across the side gap. - Select bend radius version
DQ (25mm bend radius) or SQ (10mm bend radius) according to cable routing flexibility needed. - Confirm body size
Ø3.0mm standard; PT-32-SQ is Ø2.5mm with 1 emitter + 7 receivers. - Pair with a fiber amplifier
Use AKUSENSE PE1 (standard) or PE2 (high-speed, IO-Link) series fiber amplifier.
