Overview

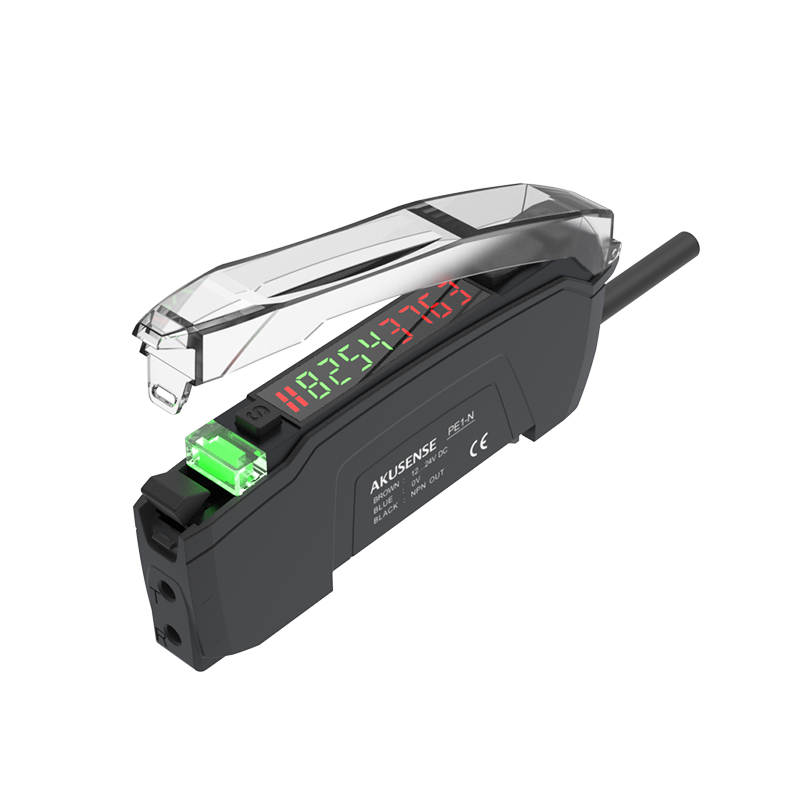

AKUSENSE PE1/PE2 Series Fiber Amplifier is a digital fiber optic sensor amplifier that pairs with through-beam or diffuse fiber optic probes for detection in tight or hard-to-reach spaces. A dual 4-digit LED display shows the set value (green) and current received light value (red), with four function indicators for simple setup. The PE1 series offers NPN or PNP output with red 630nm LED, while the PE2 series upgrades to red 660nm LED, up to 20kHz response (25μs) and switchable NPN/PNP/IO-Link output for smart factory integration. Light-on / Dark-on logic is switchable, with built-in ON-delay, OFF-delay and one-shot timer functions. Both share a slim 80×9.8×39mm housing and 12~24V DC supply. Sample test and bulk procurement are supported.
Key Features
- Dual Digital LED Display — 4-digit green set value + 4-digit red received value, 4 function indicators
- Two Performance Levels — PE1 (up to 3.2kHz / 0.16ms) and PE2 (up to 20kHz / 25μs) for standard and high-speed applications
- IO-Link on PE2 — NPN/PNP/IO-Link switchable for smart sensor integration and remote parameter setup
- Through-Beam / Diffuse Compatible — works with both through-beam and diffuse fiber optic probes
- Light-on / Dark-on Switchable — flexible output logic to suit any control requirement
- Built-in Timer Functions — ON-delay, OFF-delay and one-shot output
- Red LED Light Source — PE1 630nm / PE2 660nm, stable visible aiming spot
- Triple Circuit Protection — reverse-polarity, surge and short-circuit protection
Technical Specifications
| Parameter | PE1 Series | PE2 Series |
|---|---|---|
| Working Principle | Fiber amplifier | Fiber amplifier |
| Sensing Method | Through-beam / diffuse (with fiber probe) | Through-beam / diffuse (with fiber probe) |
| Light Source | Red LED, 630nm | Red LED, 660nm |
| Output Mode | NPN (PE1-N) / PNP (PE1-P) | NPN / PNP / IO-Link switchable |
| Response Time | 0.16 / 0.32 / 0.96 / 1.29 / 3.94 ms (5 modes) | 25μs / 50μs / 250μs / 500μs / 1ms / 2ms / 16ms (7 modes) |
| Response Frequency | ≤3200 Hz | 32 Hz ~ 20000 Hz |
| Display | 4-digit green set value + 4-digit red current value, 4 function indicators; operation green / output red LED | |
| Operation Mode | Light-ON / Dark-ON switchable; ON-delay / OFF-delay / one-shot output | |
| Operating Voltage | 12~24V DC ±10% | |
| No-Load Current | ≤40 mA | ≤54 mA |
| Voltage Drop | <1.5 V | |
| Load Current | ≤100 mA | |
| Insulation Resistance | ≥50 MΩ / 500V DC | |
| Dielectric Strength | 1000V AC, 50/60Hz for 1 min | |
| Protection Circuit | Reverse-polarity / surge / short-circuit protection | |
| Ambient Illumination | Incandescent ≤3000 Lux; sunlight ≤10000 Lux | Incandescent ≤10000 Lux; sunlight ≤30000 Lux; LED ≤3000 Lux |
| Operating Temperature | -20~50℃ (no freezing) | |
| Storage Temperature | -30~70℃ (no freezing) | |
| Operating Humidity | 35%~85% RH (no condensation) | |
| Vibration Resistance | 10~55Hz, 1.5mm double amplitude, 2h per axis (X/Y/Z) | |
| Enclosure Rating | IP50 | |
| Housing Material | PC + ABS | PC |
| Dimensions | 80.0 × 9.8 × 39.0 mm (slim rail-mount design) | |
| Accessories | Mounting bracket included | |
Model Selection Table
| Model | Series | Output | Connection |
|---|---|---|---|
| PE1-N | PE1 (630nm, up to 3.2kHz) | NPN | 2m / 3-wire cable |
| PE1-P | PE1 (630nm, up to 3.2kHz) | PNP | 2m / 3-wire cable |
| PE2-IO | PE2 (660nm, up to 20kHz, IO-Link) | NPN/PNP/IO-Link | 2m / 3-wire cable |
| PE2-IOWT | PE2 (660nm, up to 20kHz, IO-Link) | NPN/PNP/IO-Link | M8 / 3-pin pigtail (15cm) |
| PE2-IOWT2 | PE2 (660nm, up to 20kHz, IO-Link) | NPN/PNP/IO-Link | M12 / 4-pin pigtail (15cm) |
Note: Fiber amplifier requires a separate through-beam or diffuse fiber optic probe (not included). Please contact us for matching fiber cables.
Applications
- Detection in narrow spaces and hard-to-reach positions via fiber probes
- Small part presence, counting and positioning
- Mark and label detection on packaging lines
- High-speed object detection (PE2 up to 20kHz)
- IO-Link sensor network integration (PE2)
- Semiconductor, electronics and precision automation
How to Select
- Choose performance level
PE1 for standard detection (up to 3.2kHz); PE2 for high-speed (up to 20kHz, 25μs) and IO-Link needs. - Select output by control system
PE1: NPN (PE1-N) or PNP (PE1-P). PE2: NPN/PNP/IO-Link switchable in one unit. - Select connection
2m cable for fixed wiring; M8 or M12 pigtail connector for quick disconnection. - Pair with a fiber probe
Choose a through-beam or diffuse fiber cable according to your mounting space and detection target; contact us for recommendations.
