Overview

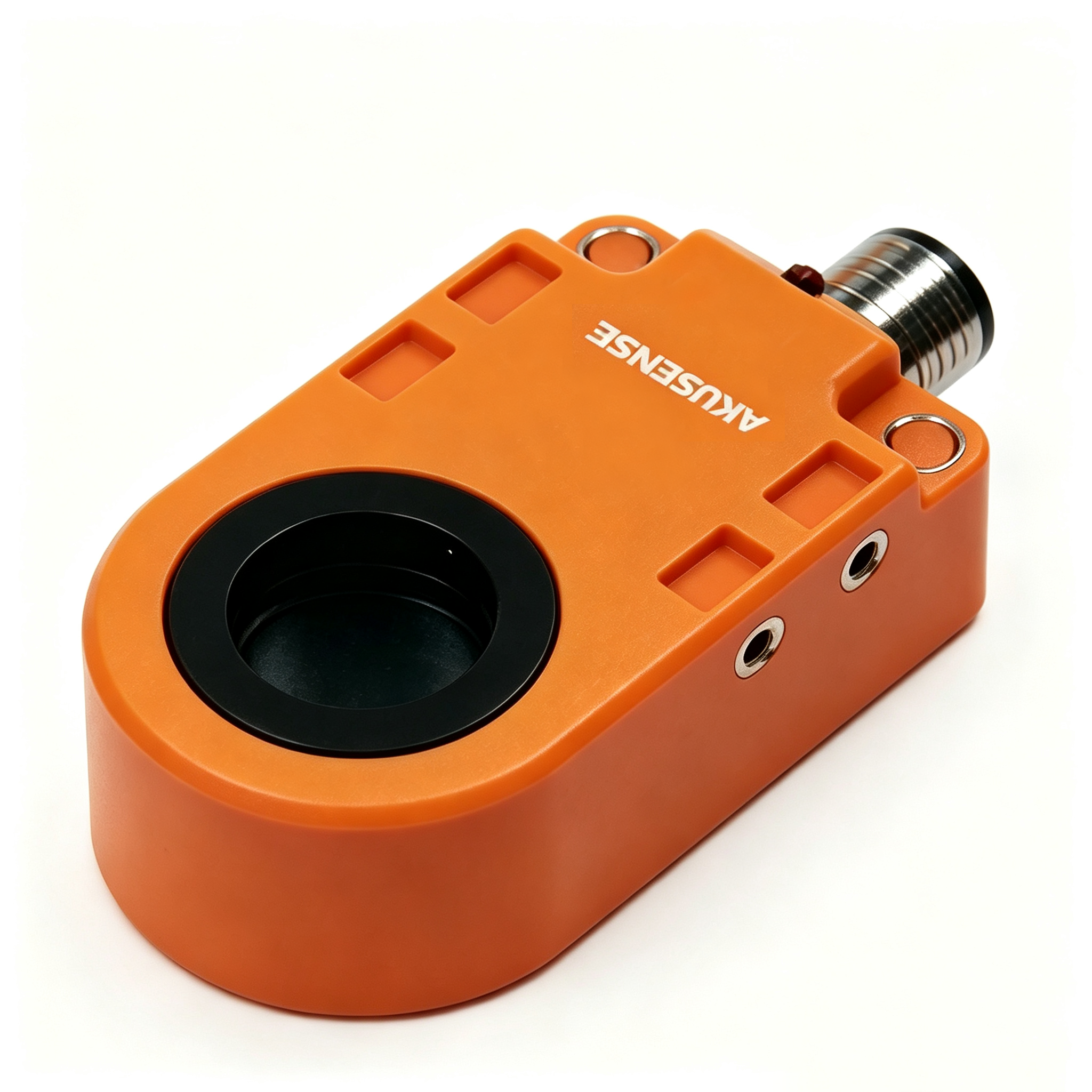

AKUSENSE ring type metal falling detection sensors adopt inductive sensing technology, designed for high-speed detection and counting of small metal parts falling through the ring hole. Available in multiple inner diameters from 5.5mm to 22.5mm, with knob-type sensitivity adjustment and red LED status indicator, they deliver stable and reliable detection for tiny metal objects down to 0.4mm. Featuring IP67 enclosure rating and built-in multiple protection circuits, they are widely used in automatic feeding, assembly, packaging and fastener production lines. Sample testing, bulk order inquiry and matching technical guidance are all supported.
Key Features
- Ring Type Inductive Sensing — non-contact detection for falling metal parts, no mechanical wear, long service life
- 8 Inner Diameter Options — 5.5mm to 22.5mm available, matching different sizes of metal workpieces
- High Precision Detection — minimum sensing object down to 0.4mm, 2% repeatability for accurate counting
- Knob Sensitivity Adjustment — flexible tuning for different metal materials and detection requirements
- IP67 Enclosure Rating — dust-proof and water-jet resistant, suitable for harsh industrial environments
- Flexible Configuration — NPN / PNP optional, NO/NC switchable, connector or pre-wired cable type
- Red LED Status Indicator — intuitive power and output status display for easy on-site debugging
- Triple Circuit Protection — reverse polarity, short-circuit and surge protection for reliable operation
Technical Specifications
| Parameter | Specification |
|---|---|
| Working Principle | Inductive sensor |
| Housing Type | Ring type |
| Operation Mode | Normally Open / Normally Closed switchable |
| Output Mode | NPN / PNP optional |
| Response Frequency | 10Hz |
| Repeatability | 2% |
| Hysteresis | ≤15% |
| Operating Temperature | -25℃ ~ 70℃ (No Freezing) |
| Storage Temperature | -30℃ ~ 80℃ (No Freezing) |
| Operating Humidity | 35% ~ 95% RH (No Condensation) |
| Operating Voltage | 10~30V DC ±10% |
| Housing Material | PBT |
| Enclosure Rating | IP67 |
| Indicator | Red LED |
| Sensitivity Adjustment | Knob |
| Protection Circuit | Reverse polarity / Short-circuit / Surge protection |
| Vibration Resistance | 10~55Hz, 1.5mm double amplitude, 2h per axis (X/Y/Z) |
| Insulation Resistance | ≥50MΩ / 500V DC |
| Dielectric Strength | 1000V AC at 50/60Hz for 1 min |
| No Load Current | ≤15mA |
| Voltage Drop | <3.0V |
| Load Current | ≤150mA |
| Leakage Current | ≤0.8mA |
| Overall Dimensions | 60.0 × 35.0 × 20.5 mm |
Model Selection Table
| Series | Inner Diameter | Min. Sensing Object | NPN Connector Type | NPN Cable Type | PNP Connector Type | PNP Cable Type |
|---|---|---|---|---|---|---|
| TH05 | 5.5mm | 0.4mm ±1% | TH05-20NE | TH05-20NR | TH05-20PE | TH05-20PR |
| TH06 | 6.5mm | 0.5mm ±1% | TH06-20NE | TH06-20NR | TH06-20PE | TH06-20PR |
| TH08 | 8.5mm | 0.6mm ±1% | TH08-20NE | TH08-20NR | TH08-20PE | TH08-20PR |
| TH10 | 10.5mm | 0.6mm ±1% | TH10-20NE | TH10-20NR | TH10-20PE | TH10-20PR |
| TH12 | 12.5mm | 0.8mm ±1% | TH12-20NE | TH12-20NR | TH12-20PE | TH12-20PR |
| TH15 | 15.5mm | 1.0mm ±1% | TH15-20NE | TH15-20NR | TH15-20PE | TH15-20PR |
| TH16 | 16.5mm | 1.2mm ±1% | TH16-20NE | TH16-20NR | TH16-20PE | TH16-20PR |
| TH22 | 22.5mm | 1.5mm ±1% | TH22-20NE | TH22-20NR | TH22-20PE | TH22-20PR |
*Note: Suffix “E” = M12 4-pin connector type; Suffix “R” = 2m 4-wire pre-wired cable type
Applications
- Automatic feeding system metal parts counting & detection
- Screw, nut and fastener falling presence verification
- Small metal workpiece missing detection in assembly lines
- Electronic component pin and terminal detection
- Spring, steel ball and tiny hardware counting
- Injection molding metal insert confirmation
- Packaging machine metal accessory counting
- Automated production line blanking detection
How to Select
- Select series by workpiece size
Choose the inner diameter slightly larger than your metal workpiece; refer to the min. sensing object parameter to ensure detection reliability. - Select output type by control system
– NPN sinking output → choose N suffix models
– PNP sourcing output → choose P suffix models
All models support normally open / normally closed switching. - Select connection type by installation
– Quick connection and replacement → M12 connector type (E suffix)
– Fixed installation, long wiring → 2m pre-wired cable type (R suffix)
