Overview

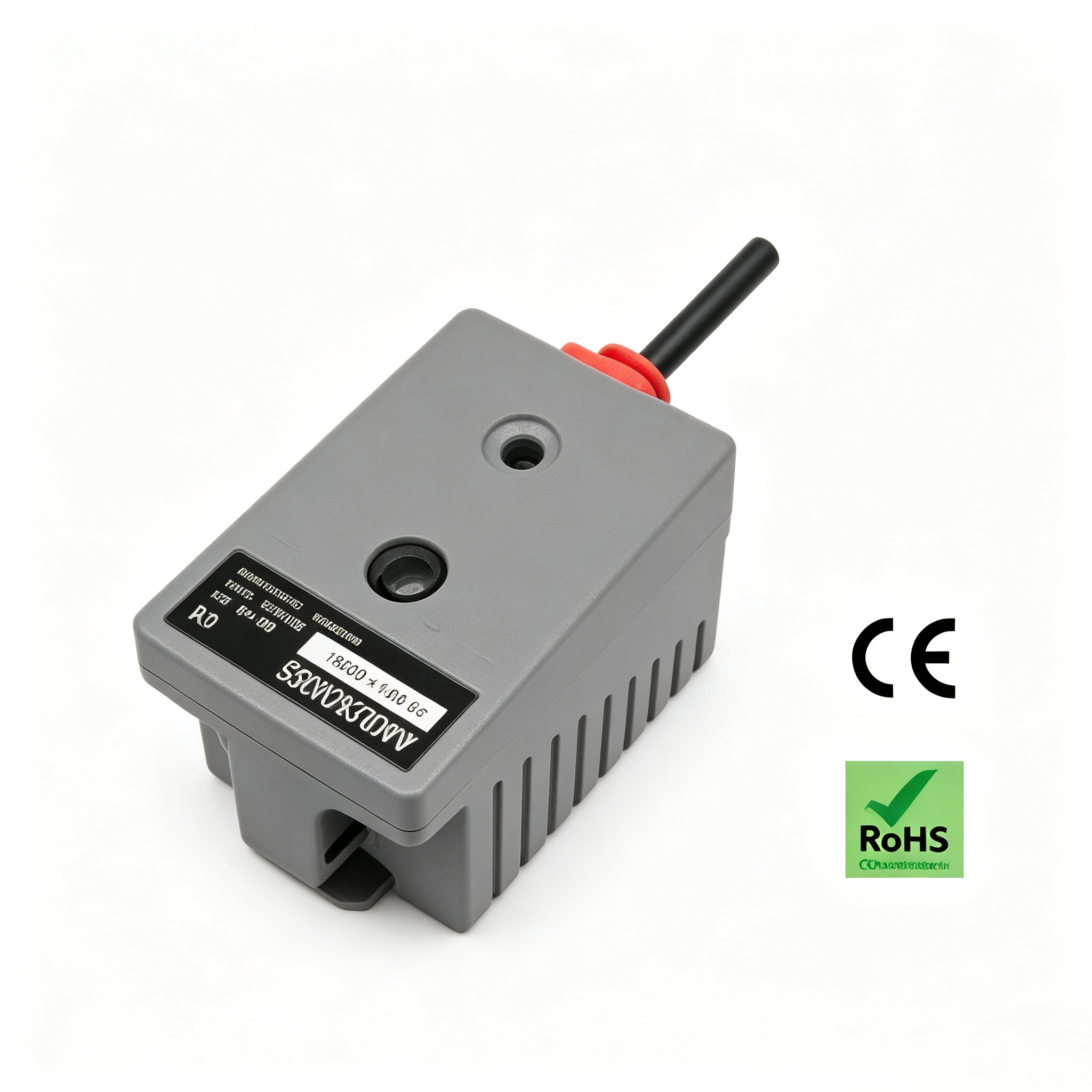

AKUSENSE pipe level switches adopt capacitive non-contact sensing technology, mounted on the outer wall of non-metallic pipes without drilling or contacting the liquid. They provide stable and accurate liquid presence / level detection for pipeline applications, with IP65 enclosure rating, built-in multiple protection circuits and button-type sensitivity adjustment. Suitable for water treatment, chemical delivery, food & beverage and industrial automation pipeline systems. Bulk order inquiry and matching technical guidance are supported.
Key Features
- Non-contact Capacitive Sensing — clamp-on installation, no pipe drilling, no contact with media
- Dual Pipe Size Compatibility — fits Ø8~Ø11mm and Ø12~Ø26mm non-metallic pipes
- High Repeat Accuracy — ≤±0.2mm switching repeatability for reliable detection
- IP65 Enclosure Rating — dust-proof and water splash resistant for industrial environments
- Triple Circuit Protection — reverse polarity, overload and short-circuit protection
- Red LED Status Indicator — clear output status display for easy on-site debugging
- Button Sensitivity Adjustment — flexible setting for different liquid types and pipe walls
- 10~30V DC Wide Voltage — compatible with most industrial control systems
Technical Specifications
| Parameter | CE15 Series | CE30 Series |
|---|---|---|
| Working Principle | Capacitive sensor | Capacitive sensor |
| Suitable Pipe Diameter | Ø8 ~ Ø11 mm | Ø12 ~ Ø26 mm |
| Max Pipe Wall Thickness | ≤1.0 mm | ≤1.5 mm |
| Output Mode | NO / NC | NO / NC |
| Output Type | NPN / PNP | NPN / PNP |
| Repeatability | ≤±0.2 mm | ≤±0.2 mm |
| Operating Temperature | 0 ~ 55℃ (No Freezing) | 0 ~ 55℃ (No Freezing) |
| Enclosure Rating | IP65 | IP65 |
| Operating Voltage | 10~30V DC ±10% | 10~30V DC ±10% |
| Connection | 2m / 3-wire cable | 2m / 3-wire cable |
| Housing Material | ABS | ABS |
| Protection Circuit | Reverse polarity / Overload / Short-circuit | Reverse polarity / Overload / Short-circuit |
| Indicator | Red LED | Red LED |
| Sensitivity Adjustment | Button | Button |
Model List
| Series | NPN NO | NPN NC | PNP NO | PNP NC |
|---|---|---|---|---|
| CE15 (Ø8~Ø11mm) | CE15-13NO | CE15-13NC | CE15-13PO | CE15-13PC |
| CE30 (Ø12~Ø26mm) | CE30-26NO | CE30-26NC | CE30-26PO | CE30-26PC |
Applications
- Non-metallic pipeline liquid level & presence detection
- Water treatment pipeline monitoring & control
- Chemical reagent delivery pipe sensing
- Food & beverage production pipeline control
- Medical equipment fluid pipeline detection
- Industrial automation pipeline monitoring
- Cooling system liquid level detection
How to Select
- Select series by pipe diameter
Ø8~Ø11mm pipe → CE15 series; Ø12~Ø26mm pipe → CE30 series - Select output type by control system
NPN sinking → NO/NC model; PNP sourcing → PO/PC model - Select operation mode
Liquid presence detection → Normally Open; liquid absence alarm → Normally Closed
