Overview

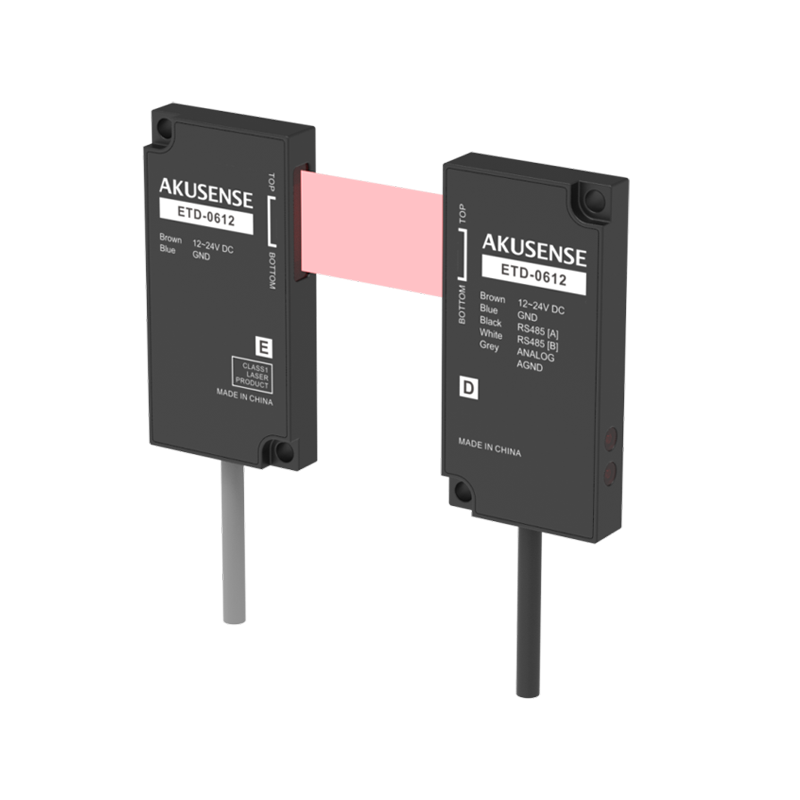

AKUSENSE ETD series through-beam laser edge detection sensors adopt photoelectric through-beam sensing with a red laser light source (650nm), delivering high-precision edge position and width measurement for film, paper, steel strip and other continuous web materials. Featuring repeatability down to 1μm/20mm and linearity of ±0.12%F.S., the sensors measure edge position up to ±6mm and width up to 12mm, with head spacing up to 500mm. RS485 communication (hexadecimal protocol) enables direct data output to PLC and control systems. Built with a flat aluminum alloy housing, IP67 rating and 1ms fast sampling, they deliver stable, precise and reliable measurement in harsh industrial environments.
Key Features
- Red Laser Through-beam Sensing — 650nm laser source for precise edge position and width measurement
- High Measurement Accuracy — repeatability 1μm/20mm, linearity ±0.12%F.S. for precision edge control
- Edge & Width Dual Measurement — edge position ±6mm and material width 12mm (ETD-0612 series)
- Long Head Spacing — up to 500mm between emitter and receiver for flexible installation
- RS485 Communication — hexadecimal protocol data output, direct connection to PLC / control systems
- Fast Sampling — 1ms (250μs for ETD-0306) sampling period for high-speed lines
- Flat Aluminum Alloy Housing — compact and lightweight, easy mounting with screws and bracket
- IP67 Enclosure Rating — dust-proof and water-jet resistant for harsh environments
- Low Temperature Drift — ±0.03%/℃ F.S. ensures stable measurement over temperature changes
- Flexible Connection Options — 2m cable or M8/4-pin pigtail connector versions available
Technical Specifications
| Parameter | Specification |
|---|---|
| Working Principle | Photoelectric sensor |
| Sensing Method | Through-beam |
| Light Source | Red Laser (650nm) |
| Measuring Range | Edge: ±6mm; Width: 12mm (ETD-0612 series) / Edge: ±3.25mm; Width: 6mm (ETD-0306) |
| Distance Between Heads | 0~500mm (ETD-0612 series) / 0~200mm (ETD-0306) |
| Repeatability | 1μm/20mm; 3μm/100mm; 5μm/200mm |
| Linearity | ±0.12%F.S./20mm; ±0.4%F.S./100mm |
| Sampling Period | 1ms (ETD-0306: 250μs) |
| Spot Width | 13.0mm (ETD-0612 series) / 7.0mm (ETD-0306) |
| Communication | RS485 / Hexadecimal |
| Operating Voltage | 12~24V DC ±10% |
| No Load Current | Emitter: ≤10mA; Receiver: ≤70mA |
| Operating Temperature | -10℃ ~ 45℃ (No Freezing) |
| Storage Temperature | -20℃ ~ 60℃ (No Freezing) |
| Operating Humidity | 35% ~ 85% RH (No Condensation) |
| Storage Humidity | 35% ~ 95% RH (No Condensation) |
| Ambient Illumination | Incandescent lamp ≤3000Lux; Sunlight ≤10000Lux |
| Temperature Drift | ±0.03% / ℃ F.S. |
| Housing | Flat |
| Housing Material | Aluminum alloy |
| Dimensions | 8.2 × 60.0 × 30.0 mm / 11.0 × 31.0 × 20.0 mm (by model) |
| Weight | Approx. 100g / 80g (by model) |
| Enclosure Rating | IP67 |
| Vibration Resistance | 10~55Hz, 1.5mm double amplitude, 2h per axis (X/Y/Z) |
| Protection Circuit | Reverse polarity protection |
| Accessories | Screw, bracket |
Model Selection Table
| Model | Measuring Range | Head Spacing | Spot Width | Sampling | Connection |
|---|---|---|---|---|---|
| ETD-0612 | Edge ±6mm; Width 12mm | 0~500mm | 13.0mm | 1ms | Emitter 2m/6-wire; Receiver 2m/2-wire |
| ETD-0612WT | Edge ±6mm; Width 12mm | 0~500mm | 13.0mm | 1ms | M8/4-pin pigtail connector (15cm) |
| ETD-0612WTS10 | Edge ±6mm; Width 12mm | 0~500mm | 13.0mm | 1ms | M8/4-pin pigtail connector (15cm) |
| ETD-0306 | Edge ±3.25mm; Width 6mm | 0~200mm | 7.0mm | 250μs | 2m / 3-wire cable |
*Indicator: Emitter — Green LED; Receiver — Red LED
Applications
- Film and foil edge position control (EPC) in converting lines
- Paper web edge detection and width measurement
- Steel strip and metal sheet edge guiding
- Lithium battery separator and electrode material edge control
- Textile and non-woven fabric edge monitoring
- Material width measurement in slitting and rewinding machines
How to Select
- Select measuring range by application
ETD-0612 series for ±6mm edge / 12mm width with up to 500mm head spacing; ETD-0306 for ±3.25mm edge / 6mm width with up to 200mm spacing. - Select connection type by installation
2m cable for fixed wiring; M8/4-pin pigtail connector for quick connection and replacement. - Confirm communication setup
RS485 hexadecimal output for direct data integration with PLC / control systems.
