Overview

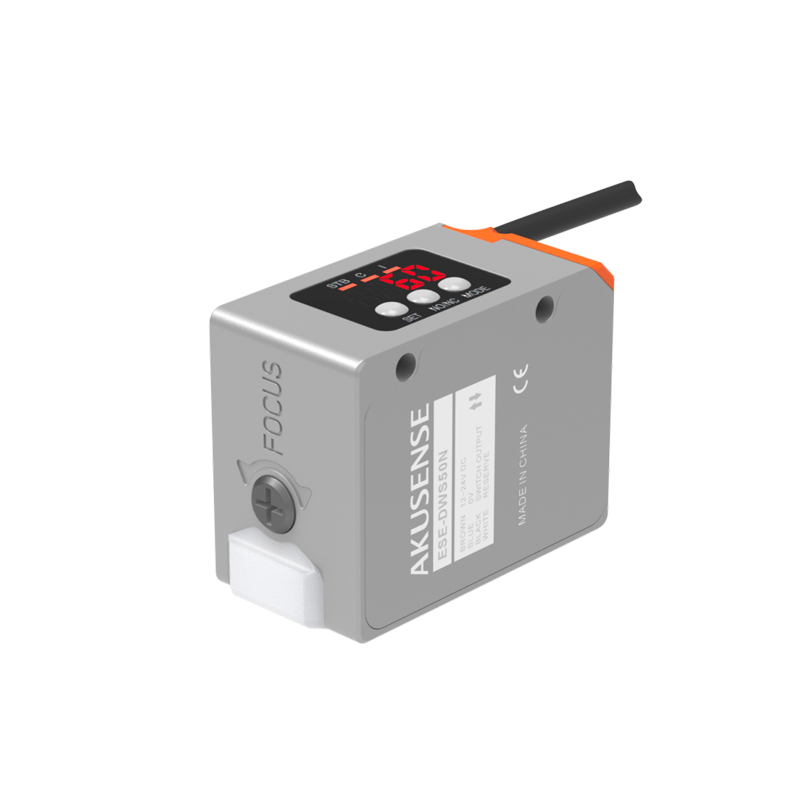

AKUSENSE ESE-DWS50 color detection sensors adopt photoelectric diffuse sensing technology with an RGB 3-color light source (Red 625nm / Green 525nm / Blue 470nm), delivering reliable color and contrast detection over a long sensing range of 30-500mm. Dual detection modes are supported: contrast mode with 0.16ms response (3000Hz) and color mode with 0.2ms response (2500Hz). Equipped with a 4-digit orange display, one-button sensitivity adjustment and selectable 1-9999ms timing function (hysteresis), the sensor provides flexible on-site tuning for complex production lines. Built with a rugged aluminum housing and IP66 rating, it resists dust, water jets and strong ambient illumination, ensuring stable performance in harsh industrial environments. NPN and PNP output versions are both available.
Key Features
- RGB 3-Color Light Source — Red / Green / Blue three-color emission for precise color and contrast detection
- Long Sensing Range — 30-500mm detection distance, covering large-area and long-distance detection needs
- Dual Detection Modes — Contrast mode (0.16ms / 3000Hz) and Color mode (0.2ms / 2500Hz)
- Selectable Timing Function — 1-9999ms adjustable delay, flexible for complex control sequences
- 4-Digit Display & Button Adjustment — orange status display with one-button sensitivity tuning
- Strong Ambient Light Immunity — stable under incandescent lamp up to 20000Lux and sunlight up to 30000Lux
- Rugged Aluminum Housing — durable die-cast aluminum body for demanding industrial use
- Light ON / Dark ON Switchable — flexible logic output for different control systems
- NPN / PNP Output Optional — ESE-DWS50N (NPN) and ESE-DWS50P (PNP) versions
- IP66 Protection & Triple Circuit Protection — dust and water-jet resistant with reverse polarity, short-circuit and surge protection
Technical Specifications
| Parameter | Specification |
|---|---|
| Working Principle | Photoelectric sensor |
| Sensing Method | Diffuse |
| Operation Mode | Light ON / Dark ON switchable |
| Output Mode | NPN / PNP (by model) |
| Response Time | Contrast mode: 0.16ms; Color mode: 0.2ms |
| Response Frequency | Contrast: 3000Hz; Color: 2500Hz |
| Sensing Distance | 30-500mm |
| Light Source | RGB (Red 625nm / Green 525nm / Blue 470nm) |
| Spot Size | >3.6mm |
| Hysteresis (Timing) | 1-9999ms, Selectable |
| Operating Voltage | 12~24V DC ±10% |
| No Load Current | ≤60mA (24V DC) |
| Voltage Drop | <1.0V |
| Load Current | ≤100mA |
| Insulation Resistance | ≥20MΩ / 250V DC |
| Dielectric Strength | 1000V AC at 50/60Hz for 1 min |
| Operating Temperature | -10℃ ~ 55℃ (No Freezing) |
| Storage Temperature | -20℃ ~ 70℃ (No Freezing) |
| Operating Humidity | 35% ~ 85% RH (No Condensation) |
| Storage Humidity | 35% ~ 90% RH (No Condensation) |
| Ambient Illumination | Incandescent lamp ≤20000Lux; Sunlight ≤30000Lux |
| Housing | Rectangular |
| Housing Material | Aluminum |
| Dimensions | 49.6 × 35.2 × 25.7 mm |
| Weight | Approx. 86g |
| Max. Tightening Torque | 0.5N·m |
| Connection | 2m / 4-wire cable |
| Sensitivity Adjustment | Button |
| Indicator | Output status: Orange (4-digit display) |
| Enclosure Rating | IP66 |
| Vibration Resistance | 10~55Hz, 1.5mm double amplitude, 2h per axis (X/Y/Z) |
| Protection Circuit | Reverse polarity / Short-circuit / Surge protection |
| Accessories | Screw |
Model Selection Table
| Model | Output Mode | Sensing Method | Sensing Distance | Light Source | Connection |
|---|---|---|---|---|---|
| ESE-DWS50N | NPN | Diffuse | 30-500mm | RGB | 2m / 4-wire cable |
| ESE-DWS50P | PNP | Diffuse | 30-500mm | RGB | 2m / 4-wire cable |
Applications
- Color mark / registration mark detection in printing & packaging lines
- Color difference identification for product sorting and quality control
- Presence / absence detection over long sensing range
- Bottle cap, label and packaging detection
- High-speed object positioning in automated assembly lines
- Large-area color contrast detection in material handling systems
How to Select
- Select output type by control system
PNP sourcing output → ESE-DWS50P; NPN sinking output → ESE-DWS50N. - Select detection mode by application
Contrast mode for color mark detection; color mode for color difference identification. - Set timing function as needed
1-9999ms selectable delay for complex control sequences.
