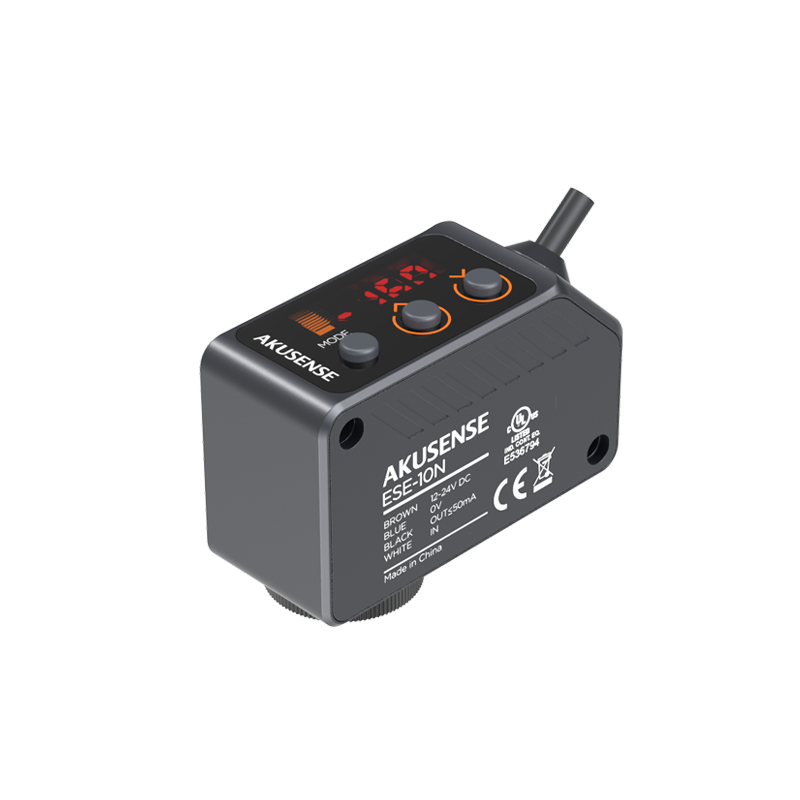

AKUSENSE ESE-10 RGB Contrast Sensor | Color Mark & Registration Detection IP67

Overview

AKUSENSE ESE-10 contrast detection sensors adopt photoelectric diffuse sensing technology with an RGB 3-color light source (Red 625nm / Green 525nm / Blue 470nm), designed for high-speed contrast and color detection of objects in printing, packaging and automated production lines. Dual detection modes are supported: contrast mode with ultra-fast 0.05ms response (10000Hz) for registration mark detection, and color mode with 0.2ms response (2500Hz) for color difference identification. Featuring a 4-digit orange display, one-button sensitivity adjustment, Light ON / Dark ON switchable operation, IP67 enclosure rating and triple circuit protection, the sensor delivers stable, reliable and easy-to-tune detection performance in harsh industrial environments. NPN and PNP output versions are both available.

Key Features

• RGB 3-Color Light Source — Red / Green / Blue three-color emission for flexible contrast and color detection
• Dual Detection Modes — Contrast mode (0.05ms / 10000Hz) and Color mode (0.2ms / 2500Hz) for different applications
• Ultra-Fast Response — high-speed detection of fast-moving objects and color marks on production lines
• Diffuse Sensing, 10±3mm Distance — non-contact detection with stable sensing range
• 4-Digit Display & Button Adjustment — orange status display with one-button sensitivity tuning for easy on-site setup
• Light ON / Dark ON Switchable — flexible logic output matching different control requirements
• NPN / PNP Output Optional — ESE-10N (NPN) and ESE-10P (PNP) versions available
• IP67 Industrial Protection — dust-proof and water-jet resistant for harsh environments
• Triple Circuit Protection — reverse polarity, short-circuit and surge protection for reliable operation

Technical Specifications

Model Selection Table

Applications

• Registration mark / color mark detection in printing & packaging lines
• Color contrast detection for product differentiation
• Presence / absence detection of objects on conveyor lines
• Bottle cap, label and packaging accessory detection
• High-speed object positioning in automated assembly lines
• Quality sorting by color difference in production processes

How to Select

1. Select output type by control system
   PNP sourcing output → ESE-10P; NPN sinking output → ESE-10N.
2. Select detection mode by application
   Contrast mode for color mark / registration detection; color mode for color difference identification.
3. Confirm sensing distance & installation
   10±3mm sensing distance, 2m pre-wired 4-wire cable connection.
